Si vous cherchez un vélo qui peut tout faire, vous avez trouvé. L’Instinct permet de conquérir les sentiers techniques, mais aussi de pousser à fond en ascension. Lire plus.
Si vous cherchez un vélo qui peut tout faire, vous avez trouvé. L’Instinct permet de conquérir les sentiers techniques, mais aussi de pousser à fond en ascension. Nous avons revu sa géométrie, les caractéristiques de son cadre et la cinématique de ses suspensions pour vous donner de l’assurance dans les montées, les descentes et tout le reste du trajet. Fiez-vous à votre Instinct.

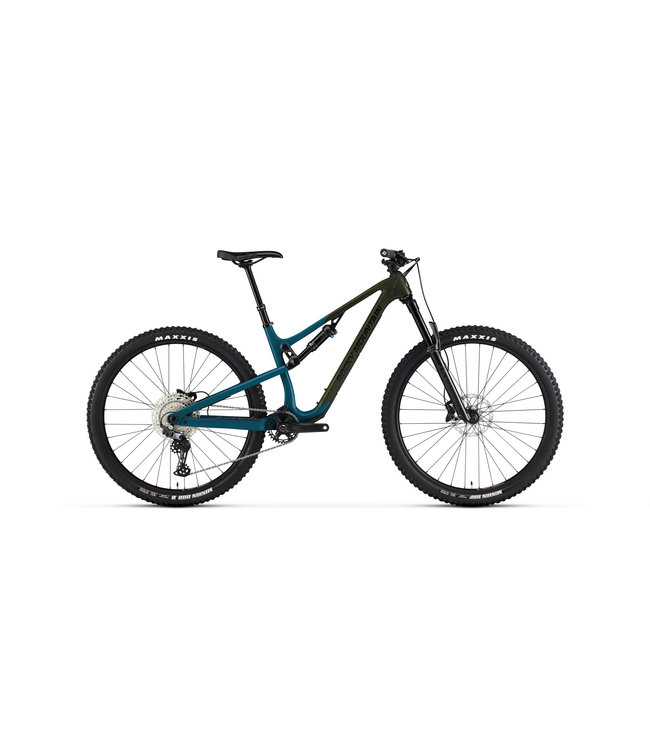

| Product | Rocky Mountain Instinct Carbon 30 Bike |
|---|---|
| Model Year | 2022 |
| Riding Type | Trail, Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry |
XS 27.5" (Slackest, Steepest), SM 27.5" (Slackest, Steepest), SM 29" (Slackest, Steepest), MD 29" (Slackest, Steepest), LG 29" (Slackest, Steepest), XL 29" (Slackest, Steepest) View Geometry
|
| Wheel Size | 29", 27.5" (650b) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Smoothwall carbon front and rear triangles; molded chainstay, seatstay, and down tube protection |
| Rear Travel | 140mm |
| Rear Shock | FOX FLOAT DPS Performance, size-specific tune, 190mm x 45mm (XS/SM) or 210mm x 52.5mm (MD/LG/XL) |
| Fork | Marzocchi Z2, RAIL damper, FLOAT EVOL spring, 44mm offset |
| Fork Travel | 150mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | FSA Orbit No.57E, sealed bearings |
| Handlebar | Rocky Mountain AM, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Stem | Rocky Mountain AM, 40mm length, 5° rise, 31.8mm bar clamp |
| Grips | Rocky Mountain Light, lock-on |
| Brakes | Shimano MT4120, 4-piston, resin pads |
| Brake Levers | Shimano MT4120 |
| Drivetrain | 1x |
| Shifters | Shimano Deore M6100, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | Shimano Deore M6100, 12-speed |
| ISCG Tabs | 2-bolt ISCG05 |
| Chainguide | Upper slider |
| Cranks | Shimano Deore, 24mm spindle, 170mm length |
| Chainrings | Shimano Deore, 32 tooth |
| Bottom Bracket | FSA BB92, 92mm press-fit |
| Pedals | None |
| Chain | Shimano Deore M6100, 12-speed |
| Cassette | Shimano Deore M6100, 12-speed, 10-51 tooth |
| Rims | WTB ST i30 TCS 2.0, 32 hole, tubeless ready (tape and valves included) |
| Hubs | Shimano MT410, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver |
| Spokes | Stainless steel 2.0 |
| Tires | Front: Maxxis Minion DHF, EXO, TR, 2.5" WT Rear: Maxxis Minion DHR II, EXO, TR, 2.4" WT |
| Saddle | WTB Volt Race, 142mm width |
| Seatpost | Rocky Mountain Toonie dropper Drop: 125mm (XS/SM), 150mm (MD), 170m (LG/XL) |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Single bolt, 34.9mm |
| Rear Dropout / Hub Dimensions | 148x12mm Boost |
| Max. Tire Size | |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Blue/Green |
| Warranty | 5 years frame; 1 year paint, decals, and frame hardware |
| Weight | |
| Miscellaneous | • Smoothlink rear suspension design • Geometry adjustable via RIDE-9 flip chip at rear shock mount • Chainstay length adjustable via two-setting flip chip at rear dropout • Internal cable routing |
